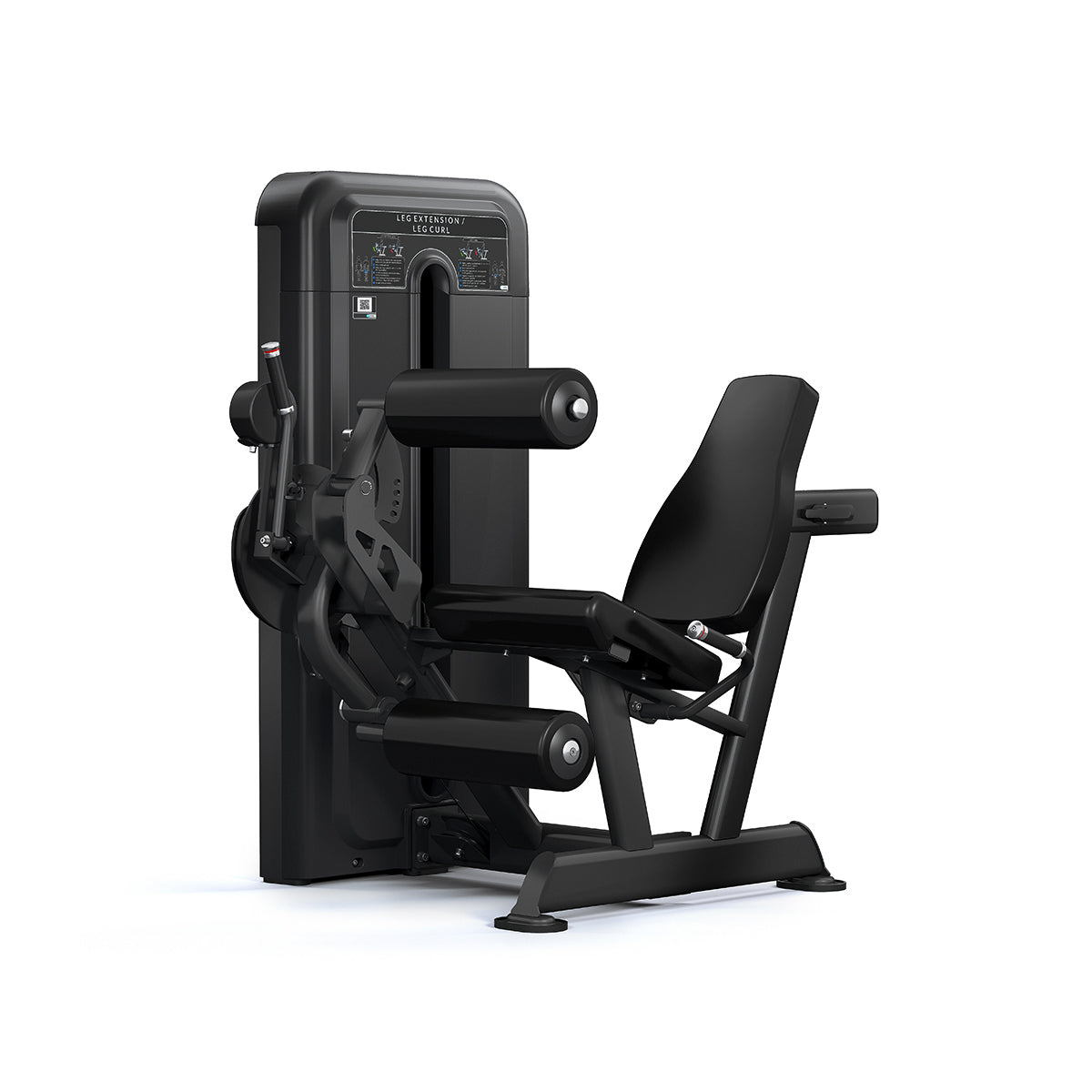

Pulse Fitness - Dual Use Leg Extension / Seated Leg Curl 132kg Weight Stack (Classic Line)

PRODUCT DIMENSIONS (L x H x W)
Length
161cm / 63-3/8″
Height
158cm / 62″
Width
133cm / 52-1/4″

WEIGHTS
Weight
274kg / 604.1lbs.
Weight Stack Plates – Standard Total Weight
132kg / 291lbs.
Maximum User Weight
180kg / 397lbs.

Dual Use Leg Extension / Seated Leg Curl 1x132kg Weight Stack Tower in Sand Black with Black Upholstery

Colour
Frame: Sand Black
Mouldings: Soft Black

Upholstery
Slate Black / Midnight (Single Black Stitching)

OPERATION
Fully Enclosed Weight Stack Tower / Magnetic and Tethered Weight Stack Pin / Variable Increment Weight Plates / Guide Rods

The Dual Strength Stations provide users with a low starting weight and yet still have the capacity of a full weight plate range. This means users can build up their workout gradually, whilst the equipment still accommodates the widest possible user group. The weight stack tower is completely covered to provide the best possible user safety experience, protecting bystanders from accidental contact with a moving weight plate. The front facing shroud is full-length, with a 90mm (3-1/2″) wide slot, giving access to the 10mm (3/8″) diameter, weight stack pin. The magnetic weight stack pin assures positive locking into the weight plates and is secured to the weight stack via a plastic-coated tether cable. The pin cannot be removed from the machine. The weight stack pin is colour-coded for easy identification.The cast and machined solid-steel weight plates are 25mm thick, 4.5kg (10lbs) and 9.1kg (20lbs) sizes, with precision fitted self-lubricating nylon bushes. This is to ensure smooth travel on the guide rods which are 19mm (3/4″) in diameter, made from steel, polished with corrosion-resistant chrome plating for a smooth operation.The weight stack tower is so positioned to be accessible from a seated position wherever possible.

Weight Stack Suspension
Proven rubber bumper damping system.Smooth Operation

Pulse Fitness strength products are renowned for their smoothness of operation. This results from our precision-engineered transmission system and weight stack tower assembly, which reduces the coefficient of friction and significantly cuts maintenance costs.

Cable Transmission
Preformed and braided stainless steel (302/304) aircraft cable, measures 4.8mm (3/16″) diameter, and is rated to over 1678kg (3700lbs) load. The 7×19 strand construction, lubricated, nylon-coated cable meets commercial and U.S. military specifications.

Enclosed Pulleys and Bearings
The pulleys come in two sizes, 11cm (4-5/16″) and 11.5cm (4-1/2″) diameter. They are constructed from nylon that is reinforced with fiberglass and designed with a deep V-grooved channel, to provide a secure cable seating.The pulley’s bearings are ABEC-rated, precision ground and have sealed ball bearing races, for added durability and a ‘fluid’ smooth feel.The pulley’s pivot axles are 25mm (1″) solid steel with oil-impregnated bronze bushings that allow for precise alignment and frictionless movement.

Hand-Grip Assembly
The hand-grips are formed from a slip-resistant, extruded rubber compound that is non-absorbing and wear-and-tear resistant. They are in diameter 33mm (1-1/4″). Encompassing the hand-grips are the machined, aluminium end-caps, these provide great durability.

Foot Rests
Dual non-slip foot rests allow the user to adopt a biomechanically correct exercise posture.

Range of Motion
All machines within the range have a full and natural range of motion, which increases flexibility and enhances the muscle’s ability to perform.

Counterbalanced Weight
The movement arm is counterbalanced allowing the user to start an exercise with a small weight selection.

Variable Resistance Cam
The cams purpose is to allow the muscle to be equally worked throughout the exercises range of motion.

Mouldings
The injection-mouldings are durable, high impact thermoplastic housings, which seal internal components, protecting the vital parts against dust and sweat, and are easy to wipe clean.All rubber coverings are durable and have a high impact resistance; they too, are easy to wipe clean.
