StairMaster - 8GX Series Gauntlet

Product Manual

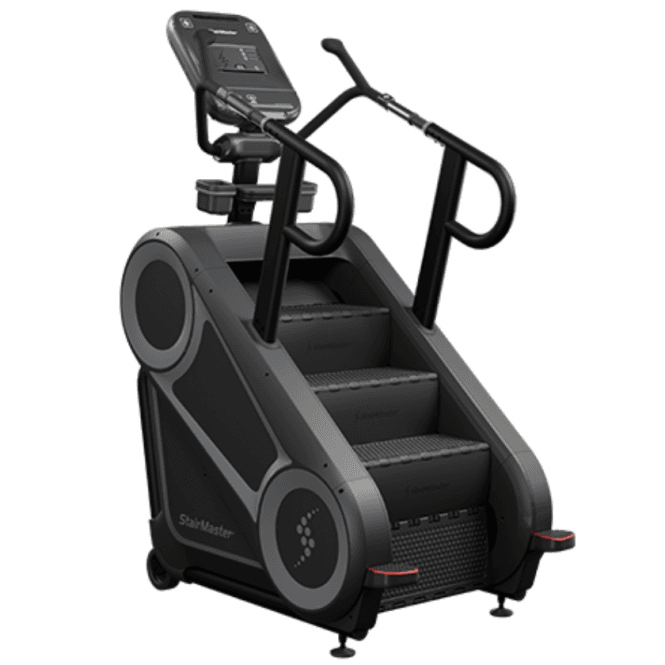

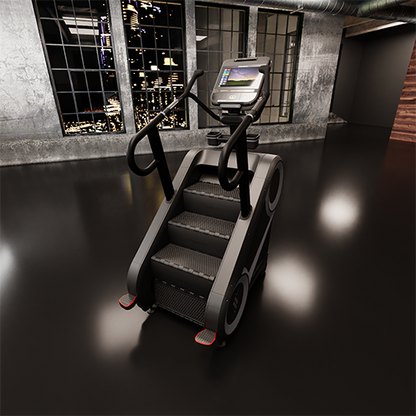

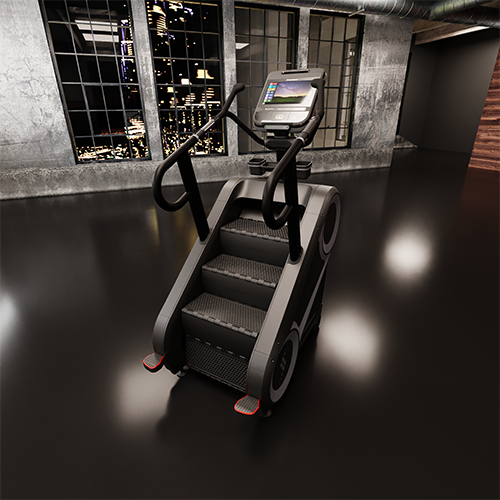

The StairMaster 8GX Gauntlet StepMill is a premium stair climber designed to deliver an intense and engaging cardio workout. Built for durability and performance, this commercial-grade StepMill helps users improve endurance, strength, and calorie burn with its advanced technology and customizable settings.

Featuring 20 adjustable step levels, ranging from 24 to 162 steps per minute, the StairMaster 8GX supports a variety of climbing workouts, making it ideal for all fitness levels. Its interactive display options allow users to virtually climb famous landmarks, adding motivation and variety to every session.

Engineered for commercial gyms, home fitness enthusiasts, and professional training facilities, the 8GX Gauntlet ensures a smooth, low-impact stair climbing experience with a sturdy build and ergonomic design. Whether you’re looking to boost cardio endurance, burn calories, or engage in high-intensity interval training (HIIT), this top-tier stair climber is the ultimate fitness solution.

Upgrade your cardio training with the StairMaster 8GX Gauntlet, the perfect step machine for high-performance results.

Length: 1470mm / 58in

Width 860mm / 34in

Height: 2030mm / 80in

Minimum Ceiling Height Requirement: Tallest user height plus 3 feet.

Product Weight: 226kg / 498lb

Step Height: 230mm / 9in

Step Surface Area: 560mm x 250mm / 22in x 10in

Step Rate: 25 Levels ranging from 24 – 190 steps per minute

Self Powered: No, standard 240V supply required.

Step Speed: Adjustable from 24 to 190 steps per minute.

Max User Weight: 181kg / 400lb

Console Type: 16" Touch Screen with OpenHub™ connectivity

Heart Rate Sensors: Yes, built in hand sensors and polar chest strap compatible.

• Choose from LCD, 10″ or 16" OpenHub display options
• Includes the Landmark Challenge Program which allows users to climb well-known landmarks from around the world like the Eiffel Tower, Statue of Liberty and Taj Mahal. Standard console programs are also included
• Redesigned handrail system supports multiple climbing positions
• Integrated speed and stop controls for a better user experience
• Bluetooth connectivity for user workout data tracking
• Telemetry and contact HR
• USB charging port
• HDMI streaming available with PVS and 16″ display
• Personal cooling fans create a more rewarding workout
• Multiple bottle and accessory holders
• LCD and 10″ displays pre-wired for 8 Series PVS entertainment, 800/900mHZ receivers, and tablet holder
• Service panel removes with 4 fasteners, allowing for easy access to drive train and electronics.
• Power Connection 240V
• Powder Coated Steel Frame

16" Touch Screen Console:

The user-friendly 16 inch console with embedded touchscreen for all StairMaster consoles. Bluetooth, TV and USB connectivity provides all the features your members need.

Console Features:

• Bluetooth connection to track user's workout data
• USB charging port
• Multiple program options including the Landmark Challenge where the user can climb famous buildings from around the world
• Gauntlet includes six different workouts with progressively increasing intensity to push everyone to their limits!
• Pre-wired for ECOFIT Asset Management solution
• Pre-wired for 8 Series PVS entertainment option
• Compatible with the tablet holder option
• Compatible with option 800/900mHZ receiver

Consumer:

Limited 10 year warranty on structural frame not including coatings, all other components warranted for 10 years parts and 3 years labor.

Commercial:

Limited 10 year warranty on structural frame not
including coatings, all other components warranted for 2 years parts and 2 years labor.
